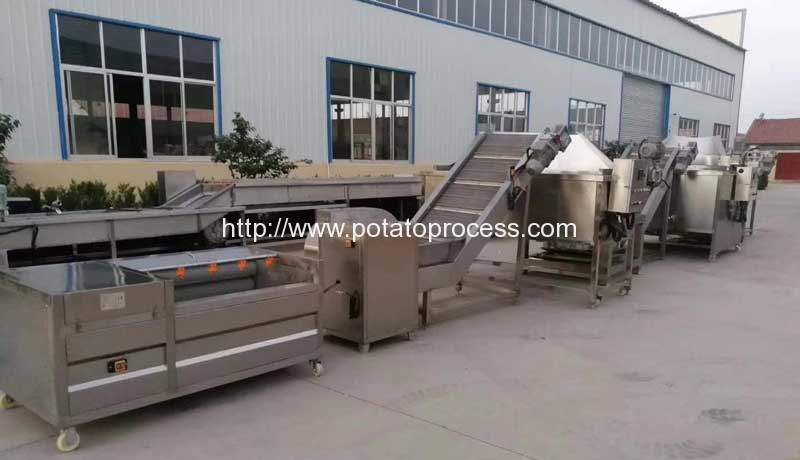

Semi-Automatic French Fries Production Line with Auto Discharging Frying and Blanching Machine is used to make french fries in semi-automatic method. it adopt automatic discharging type potato blanching machine and frying machine, which can reduce labor cost and increase this line capacity.
Specification of Semi-Automatic French Fries Production Line
| Item | Name | Description | Qty. | |
| 1 | Brush Type Washing Peeling Machine | Power:1.1KW | 1 | unit |
| Dimensions:1200*850*800mm | ||||
| Weight: 200kg | ||||
| Capacity:400kg/h | ||||
| 2 | Potato Sticks Cutting Machine | Power:1.1KW | 1 | unit |
| Dimensions:950*800*950mm | ||||
| Weight:110kg | ||||
| 3 | Elevator | Power:0.75kw | 1 | unit |
| Voltage:380v/50Hz | ||||
| Dimension:1500*800*2200mm | ||||
| 4 | Automatic Discharge Blanching Machine | Power:42KW | 1 | unit |
| Voltage:380v/50Hz | ||||
| Dimensions:2200*1000*2400mm | ||||
| 5 | Continuous Water Dehydrator | Power:0.5KW | 1 | unit |
| Voltage:380v/50Hz | ||||
| Dimensions:1800*1000*900mm | ||||
| 6 | Elevator | Power:0.75kw | 1 | unit |
| Voltage:380v/50Hz | ||||
| Dimension:1500*800*2200mm | ||||
| 7 | Automatic Discharge Frying Machine | Power:61kw | 1 | unit |
| Voltage:380v-3 | ||||
| Dimension:2200*1000*2400mm | ||||
| Weight: 200kg | ||||
| 8 | Continuous De-Oil Machine | Power:0.5KW | 1 | unit |
| Voltage:380v/50Hz | ||||
| Dimensions:1800*1000*900mm | ||||
| 9 | Elevator | Power:0.75kw | 1 | unit |
| Voltage:380v/50Hz | ||||
| Dimension:1500*800*2200mm | ||||
| 10 | Seasoning Machine | Power:0.75kw | 1 | unit |
| Voltage:380v/50Hz | ||||
| Dimension:1500*650*1500mm | ||||
| 11 | Packing Machine | Power:2.2kw | 1 | unit |
| Voltage:380v/220v/50Hz | ||||
| Dimensions:970*680*1950mm | ||||
| Film width:max.320mm | ||||
| Film diameter:max.300mm | ||||
| Bag length:60-200mm | ||||
| Bag width:50-150mm | ||||
| Weight: 300kg | ||||
Working Video of Semi-Automatic French Fries Production Line
Company Profile
Adhering to the principle of managing scientifically and honesty and credit,our factory has passed ISO9001-2000 quality system certification. Now, Our factory can providepotato dry cleaning machine,potato brush cleaning and sorting line,potato washing machine,potato peeling machine,potato sticks cutting machine,potato grader,bob体育外网下载,french fries packing machine, potato starch production line,potato mesh bag packing machine,potato dosing packing machine.
Our potato processing products have passed with CE,ISO and SGS Certificates and has been widely sold all over the world.
